The Magnetic Pulser - Model MP5 Manual
The Magnetic Pulser - Model MP5 Manual
Printer Friendly Version
Picture of Magnetic Pulser Thank you for allowing us to be a part of your Wellness Team.

The Magnetic Pulser is a consumer product designed to be used as part of a Wellness Lifestyle. A commitment to healthy lifestyle choices is an important factor in the journey to Wellness.

The SOTA Magnetic Pulser generates pulsed magnetic fields which create microcurrents of electricity that work with the body's natural electricity for general health and well-being.

The Magnetic Pulser is designed to be used independently, but can also be used together with any of the SOTA Products.

With proper care, your Magnetic Pulser should provide you many years of trouble-free use.

Please understand that results will vary.

Manual Content

Before Using Electrical Specifications
Complete Unit Includes Troubleshooting
Do Not Use Countries that Participate in Manufacturing
Cautions Replacement Accessories
Summary of Lights Warranty
How to Use the Magnetic Pulser Repairs

Before Using
Please read this manual thoroughly before using your Magnetic Pulser. This is the most up-to-date manual.

Please note information in this manual is subject to change.

Complete Unit Includes

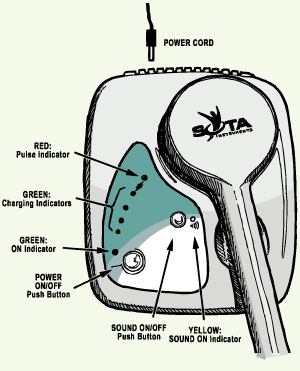

Magnetic Pulser Unit Diagram
  1. One (1) Magnetic Pulser Unit
  2. One (1) Wall Adaptor
  3. One (1) Carrying Case
  4. One (1) Product Manual

Do Not Use
  1. Do not use with a pacemaker. With the permission of your physician, it may be safe to use below the waist.
  2. Do not use in the following situations as safety has not been explored:
  1. In the case of pregnancy.
  2. In the area of an implanted device such as a shunt, etc.
  3. In the area of external or internal bleeding wounds, including menstruation.
  4. In the area of a metal implant. The metals may absorb heat and could cause discomfort or a burn. Metal dental fillings are rarely affected.
  1. As with all electrical products do not use near water, when driving a car or when operating heavy equipment.

Cautions back to top
  1. If you experience nerve pain or an increase in nerve pain while using the unit, please discontinue using in the area of pain.
  2. Caution is advised when using heat-producing or heat-sensitive ointments, lotions or medications as a skin burn may occur.
  3. When in use, please ensure there is proper airflow around the head of the paddle. With normal use, the Hand Paddle will become very warm to hot. If it feels uncomfortable, turn the unit OFF and allow it to cool before resuming use to prevent a skin burn.
  4. To prevent damage or loss of information, keep away from homeopathic remedies, credit cards, security cards, audio and video tapes. Also from electronic equipment—computer disks, hearing aids, cell phones, answering machines and others.
  5. While this technology is generally considered safe, there exists potential for rare individual reactions that cannot reasonably be foreseen. Therefore, your use of the SOTA Products constitutes your agreement that you are responsible for your decision to use the technology. SOTA assumes no responsibility for any direct or indirect loss or damage believed to arise from using the SOTA Products.

Summary of Lights
GREEN: Indicates the unit is ON and the pulse is building.
RED: Indicates the pulse is being released.
YELLOW: Indicates the Sound Option is ON.

How to Use the Magnetic Pulser
Magnetic Pulser on Shoulder
  1. Insert the power plug from the AC-DC Wall Adaptor into the unit and plug the adaptor into an electrical outlet.
  2. Push the ON/OFF button. All the lights will flash in sequence to indicate the unit is ready for use.

    The GREEN lights indicate the pulse is building. The RED light will flash each time the Pulsed Magnetic Field is released from the Hand Paddle. A click may or may not be heard as the pulse is released.
  3. Sound Option: To hear a beep each time the magnetic pulse is released, push the SOUND button. The YELLOW light will indicate the Sound Option is ON.
  4. Magnetic Pulser on Knee
  5. The head of the Hand Paddle should be located on or as close to the body as possible. It does not need to touch the skin as clothing will not interfere with the magnetic field.
    Note: The Pulsed Magnetic Field penetrates up to nine inches.
  6. When a cycle finishes (approx. 20 - 30 minutes) the unit will beep. To continue with another cycle, push the ON/OFF button within 20 seconds of the beep. The unit turns itself OFF if the ON/OFF button is not pushed within this time.
  7. To turn the unit OFF before the end of a cycle, push the ON/OFF button.
  8. Unplug the Wall Adaptor when not in use.

How it Should Feel
Most individuals will not feel any sensation while using the Magnetic Pulser.

With normal use, the Hand Paddle will become very warm to hot. If it feels uncomfortable, turn the unit OFF and allow it to cool before continuing.

Another option is to place something between you and the Hand Paddle, like a single layer of towel or blanket, always ensuring there is proper airflow around the head of the paddle.

A faster option – use an ice pack or two. Cool your paddle off by applying an ice pack to the paddle face (you can even apply two – one for each side of the paddle). The face of the Hand Paddle is brought back to a comfortable temperature quickly and efficiently.

Typical Use
Length of Session: It is best to begin slowly (10 minutes) and then gradually increase the length of each session. Daily use varies from
20 - 30 minutes to two hours or more.

Length of Use: When used as part of a Wellness Protocol, daily use for many weeks is more important for results than using occasionally. For specific purposes, longer and more frequent sessions may be more beneficial. Generally, the Magnetic Pulser can be used as needed.

Placement: The Hand Paddle may be kept on one location for one or more cycles. It may also be moved at any time to a different location.

Drink plenty of water: It’s important to drink enough water when using the unit. Drinking ozonated water is especially helpful.

Stop Gradually: Reduce the amount of time each day for the last week of use. If using more than one SOTA unit at a time, it is suggested to stop only one unit at a time.

Electrical Specifications back to top
Your Magnetic Pulser outputs a time-variant pulsed DC
magnetic field.

Power Requirements
12 Volts DC @ 1.5 Amps, Tip or Center Positive.
Caution: Exceeding the voltage rating or reverse connection may result in injury or unit failure. This will void the warranty.

Optional Power Input
To operate the Magnetic Pulser from a 12 Volt DC source, such as an automobile battery or an appropriate Solar Panel, purchase a Universal Power Cord with Tip or Center Positive.

Regular Mode - Output Specifications
Magnetic Field Intensity: Greater than 6000 Gauss at face of the Hand Paddle as tested with an F.W.Bell 5080 Tesla Meter.
Pulse Duration: ~2.5 mS (milliseconds).
Pulse per Cycle: 255 pulses (approx. 20 - 30 minutes).

The Troubleshooting Guide is a great tool to check if you are experiencing any issues with your unit.

Countries that Participate in Manufacturing
The manufacturing of the SOTA Products are a global collaboration. The following countries participate in the making of the Magnetic Pulser (listed in alphabetical order): Canada, China, Hong Kong, Malaysia, Mexico, Taiwan, Thailand and the USA.

Replacement Accessories
To replace your accessories, please visit our All Products page.

Warranty back to top
The Magnetic Pulser Model MP5 is covered by a two (2) year limited warranty. Please keep proof of purchase. Warranty is void if the failure is due to abuse or negligence. SOTA reserves the right to make changes to the Magnetic Pulser without obligation.

Please contact SOTA at:
Toll Free: 1.800.224.0242 (Canada & USA)
Tel: 1.250.770.2023
