YumaLite Manual
Printer Friendly Version
Picture of YumaLiteThank you for allowing us to be a part of your Wellness Team.

The YumaLite is a consumer product designed to be used as part of a Wellness Lifestyle. A commitment to healthy lifestyle choices is an important factor in the journey to Wellness.

The SOTA YumaLite uses White and Red LED light to balance the effects of both decreased exposure to natural sunlight as well as the overexposure to blue light from modern technologies. The LED light works with your body’s rhythms, for greater energy, general health and well-being.

The YumaLite is designed to be used independently, but can also be used together with any of the SOTA Products.

With proper care, your YumaLite should provide you many years of trouble–free use.

Please understand that results will vary.

Manual Content

Before Using Replacing the Batteries
Complete Unit Includes Electrical Specifications
Do Not Use Troubleshooting
Cautions Countries that Participate in Manufacturing
How to Activate the Batteries Warranty
How to Use the YumaLite Repairs

Before Using
Please read this manual thoroughly before using your YumaLite. This is the most up-to-date manual.

Please note information in this manual is subject to change.

Complete Unit Includes
  • One (1) YumaLite Unit
  • Three (3) AAA Alkaline Batteries
  • One (1) Carrying Bag
  • One (1) Product Manual

Do Not Use back to top
  1. Do not use while performing high–impact activities.
  2. As with all electrical products do not use near water, when driving a car or when operating heavy equipment.

  1. If you experience any headaches, irritability or discomfort in your eyes while using the unit, decrease your treatment time and frequency. If this doesn’t help, try the Red light. If the headaches, irritability or discomfort in your eyes continues, discontinue use.
  2. Consult your health care provider prior to using if you:
    1. Are pregnant.
    2. Are taking any prescription medication.
    3. Suffer from headaches.
    4. Have been diagnosed with any psychiatric, psychological or other medical condition, including depression, bipolar disorder or epilepsy.
    5. Have ever had a seizure.
    6. Have any eye condition or eye strain.
    7. Are on light–sensitive medications.
  3. When using heat–producing or heat–sensitive ointments, lotions or medications near the eyes.
  4. While this technology is generally considered safe, there exists potential for rare individual reactions that cannot reasonably be foreseen. Therefore, your use of the SOTA Products constitutes your agreement that you are responsible for your decision to use the technology. SOTA assumes no responsibility for any direct or indirect loss or damage believed to arise from using the SOTA Products.

How to Activate the Batteries
How to Activate the batteries
  1. Position the visor away from you with the lens facing down.
  2. Pull battery activation tab as indicated in the image and remove to activate batteries.

How to Use the YumaLite back to top
  1. Position the visor away from you, with the LEDs facing down.
  2. YumaLite Features
  3. Carefully grasp the sides of the unit and gently slide the unit onto your head until the front support strap contacts your forehead and the arms rest above your ears.
    1. Ensure that the arms are not resting on your ears or glasses. The unit should comfortably rest on your head above the ears.
  4. Test for stability by gently moving your head up and down and from side to side. If necessary, adjust the rear strap until the unit sits comfortably, yet securely.
    1. Tighten or loosen the rear strap as required by sliding the buckle to the right or left as necessary. See image above.
  5. Turn unit ON by pressing the ON/OFF button.
  6. YumaLite Timer
    1. To use the Timer function, slide the Timer Switch to ON, as shown in the image to the right, before turning the unit ON.
  7. The unit will automatically start with the White light ON. To use the Red Light, press the ON/OFF button a second time.
    1. Changing the color does not reset the 20-minute timer.
  8. Adjustment of the light can be made in 2 ways:
    1. By moving the front support strap up or down on the forehead or
    2. YumaLite Visor
    3. By tilting the angle of the visor as shown here.
  9. When a timed cycle finishes (approx. 20 minutes), the unit will turn itself OFF.
    1. To turn the unit OFF before the end of a timed cycle, slide the Timer switch to OFF or press the ON/OFF button.

      If you are using the White light, you will need to press the ON/OFF button twice in order to turn the unit OFF.
  10. To turn the unit OFF when not using the Timer, press the ON/OFF button.
    1. If you are using the White light, you will need to press the ON/OFF button twice in order to turn the unit OFF.
  11. When the unit is OFF, you should see no visible light coming from the device.

    Note: Turn the unit OFF when not in use.

Color: Choosing to use White or Red light is a personal preference – both are just as effective at balancing the low energy and low spirits associated with decreased exposure to natural light.

When used to balance overexposure to blue light, Red light is used.

Arms: Do not bend the arms of your unit beyond reasonable extension.

Storage: Always store your unit in the carrying bag provided and box, if possible. Do not allow your unit to come in contact with water, extreme heat or moisture.

Cleaning: To clean your unit, use a slightly damp cotton cloth to wipe the unit and if necessary wipe with a diluted, water based cleaner. Do not use harsh solvents, cleaners or abrasive material of any kind. Do not submerge the unit in water.

How it Should Feel
Most individuals will not feel any sensation while using the YumaLite.

Typical Use
Length of Session: Build up time gradually. It is best to start slowly. Start with 10 minutes a day. Increase gradually to a minimum of 30 minutes each day.

Limit your use to a maximum of 90 minutes per day.

Length of Use: The unit should be used daily for a minimum of 7 days or longer. After the benefits have been achieved, simply use the unit as needed.

When to Use: When used to help balance limited exposure to natural sunlight, use in the morning to help the body wake up and function normally. If required, add a second session in the afternoon.

When used to balance exposure to blue light, use in the morning, afternoon or early evening. If the Red light is too stimulating, limit usage to morning and afternoon.

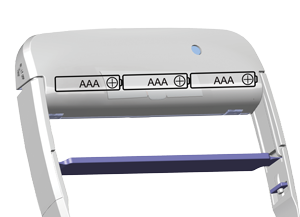

Replacing the Batteries back to top
  1. To change the batteries in your YumaLite:
  2. YumaLite Replace Batteries
    1. Position the visor away from you with the LED lights facing down.
    2. Remove the battery cover by applying a gentle, downward pressure at the top edge of the battery cover.
    3. Gently pull the black tab to remove the 3 AAA batteries.
    4. Insert the new batteries, into the left and right side first and then insert the middle battery, ensuring the positive and negative ends are facing in the correct direction, as indicated in the battery compartment.
    5. Replace the battery cover by aligning the tab and sliding the cover until it “clicks” into place.
    6. Press the ON/OFF button to ensure the lights illuminate.

Electrical Specifications
Power Requirements
Use three (3) AAA batteries.

Note: Alkaline batteries are recommended for best operation.

Optional Power Input
The YumaLite can also be operated using rechargeable batteries.

Output Specifications
White LEDs: The White LEDs emit a light intensity of 800 lux* per LED. In addition, each White LED has a light output of 10 mW**, for a total output of 30 mW.

Red LEDs: The Red LEDs emit a light intensity of 194 lux* per LED. In addition, each Red LED has a light output of 3 mW**, for a total output of 9 mW.
*Lux measured using an EXTECH 40127.
**Light output measured using a Newport Optical 1830-C Light Meter.

Troubleshooting back to top
The Troubleshooting Guide is a great tool to check if you are experiencing any issues with your unit.

Countries that Participate in Manufacturing
The manufacturing of the YumaLite is a global collaboration. We do not know all the countries that participated in the making of the YumaLite, as SOTA purchased the assets of the original YumaLite Company including their remaining inventory. We do know the following countries participated in the making of the YumaLite (listed in alphabetical order): Canada and China.

The YumaLite Model YL2 is covered by a one (1) year limited warranty. Please keep proof of purchase. Warranty is void if the failure is due to abuse or negligence. SOTA reserves the right to make changes to the YumaLite without obligation.

Please contact SOTA at:
[email protected]
Toll Free: 1.800.224.0242 (Canada & USA)
Tel: 1.250.770.2023
