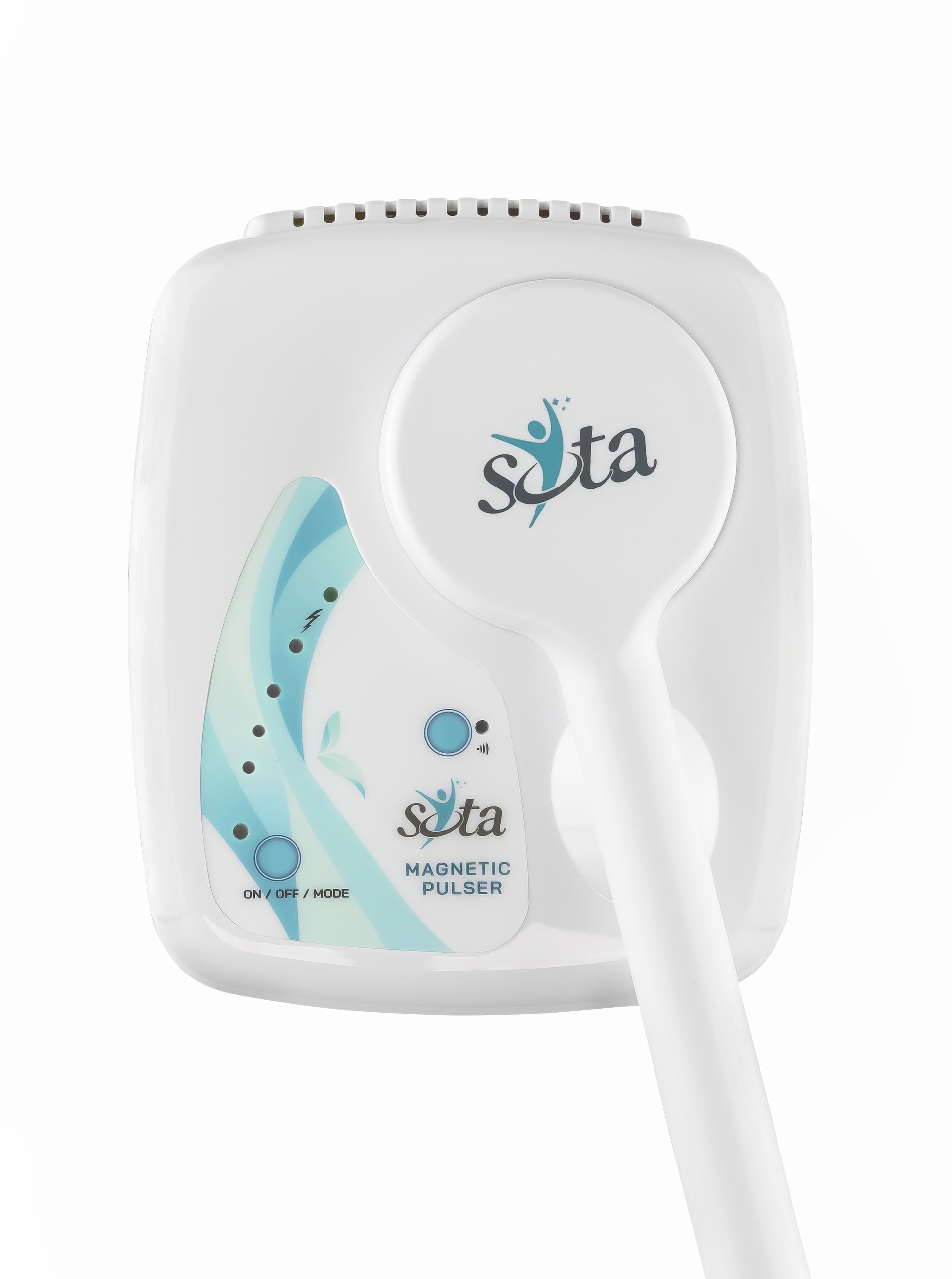

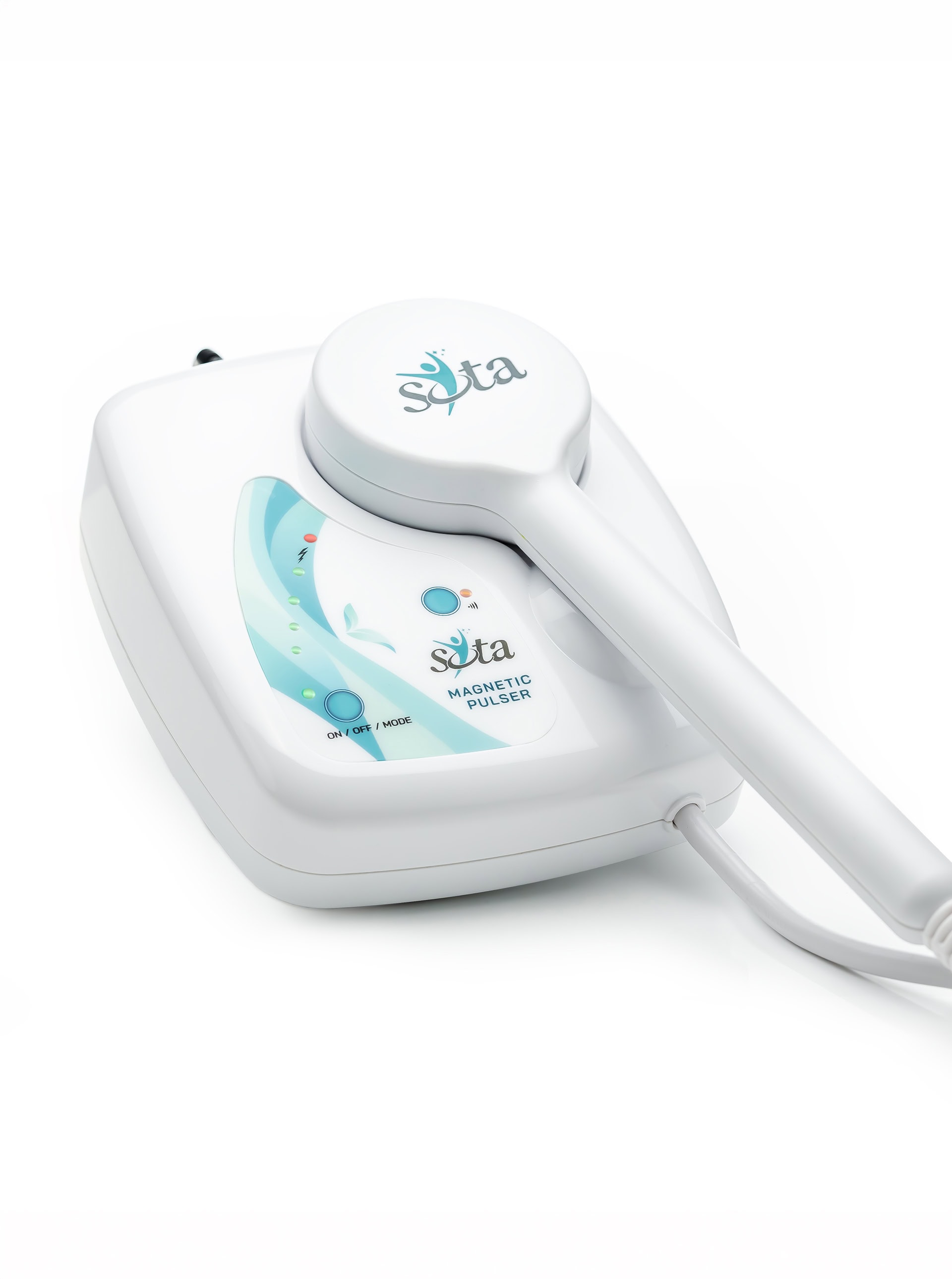

Magnetic Pulser

Magnetic Pulsing Features

• Two user modes
  • Regular Mode generates a > 7,000 Gauss, momentary (> 8.0 mS) pulsed DC magnetic field approximately every 4 seconds, measurable to 14 inches (35 cm).
  • Fast Mode generates a > 2,500 Gauss, momentary (> 6.0 mS) pulsed DC magnetic field approximately every second, measurable to 7 inches (18 cm).
• LED light guide
  • A series of GREEN LEDs illuminate in sequence to show the unit charging in Regular Mode.
  • YELLOW LEDs show charging in Fast Mode.
  • RED LED flashes to indicate the magnetic pulse has been delivered through the coil in the Hand Paddle.
• Sound options
  • SOTA Wellness Program Mode beeps when it is time to move the Hand Paddle to the next location, matching the Pulse Point Locations Charts. (Wellness Program Mode is available on models sold November 2024 or later.)
  • Sound Mode beeps each time the magnetic pulse is released.
• Automatic timer
  • Regular Mode delivers 680 pulses per cycle (approximately 40 minutes).
  • Fast Mode delivers 1,600 pulses per cycle (approximately 25 minutes).
• Marked polarity — Outputs both a negative and a positive magnetic field polarity — the negative (−) polarity is clearly marked on one side of the Hand Paddle.
• General — capacitor lifetime greater than 30 million pulses.

Additional Features

• With the addition of a universal adaptor, the unit can operate from a 12 Volt DC source such as an automobile battery or an appropriate solar panel.

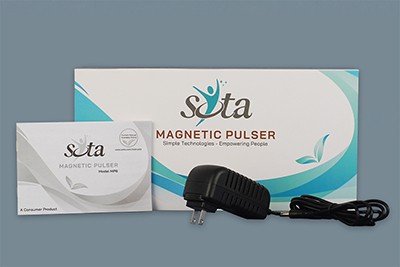

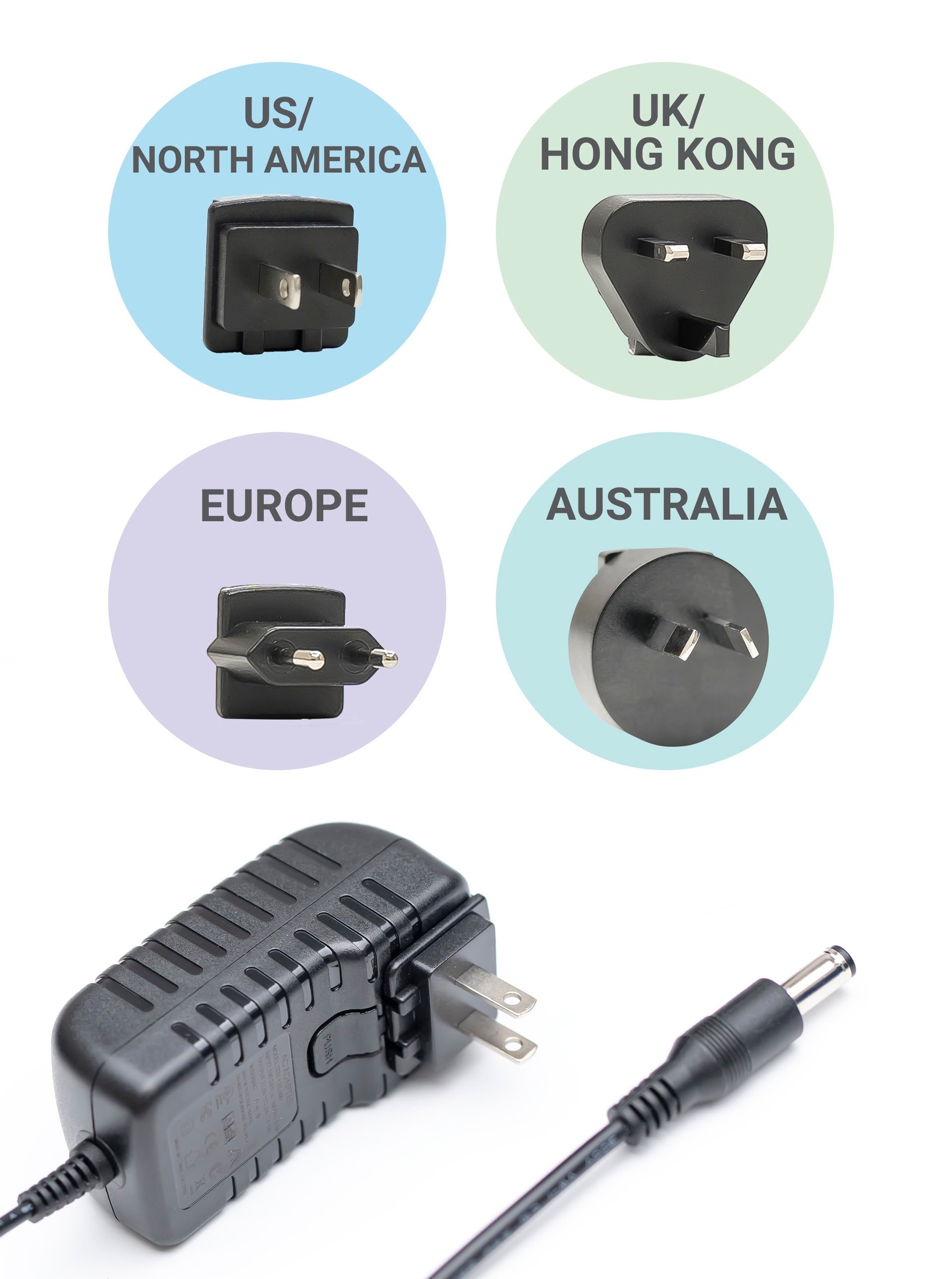

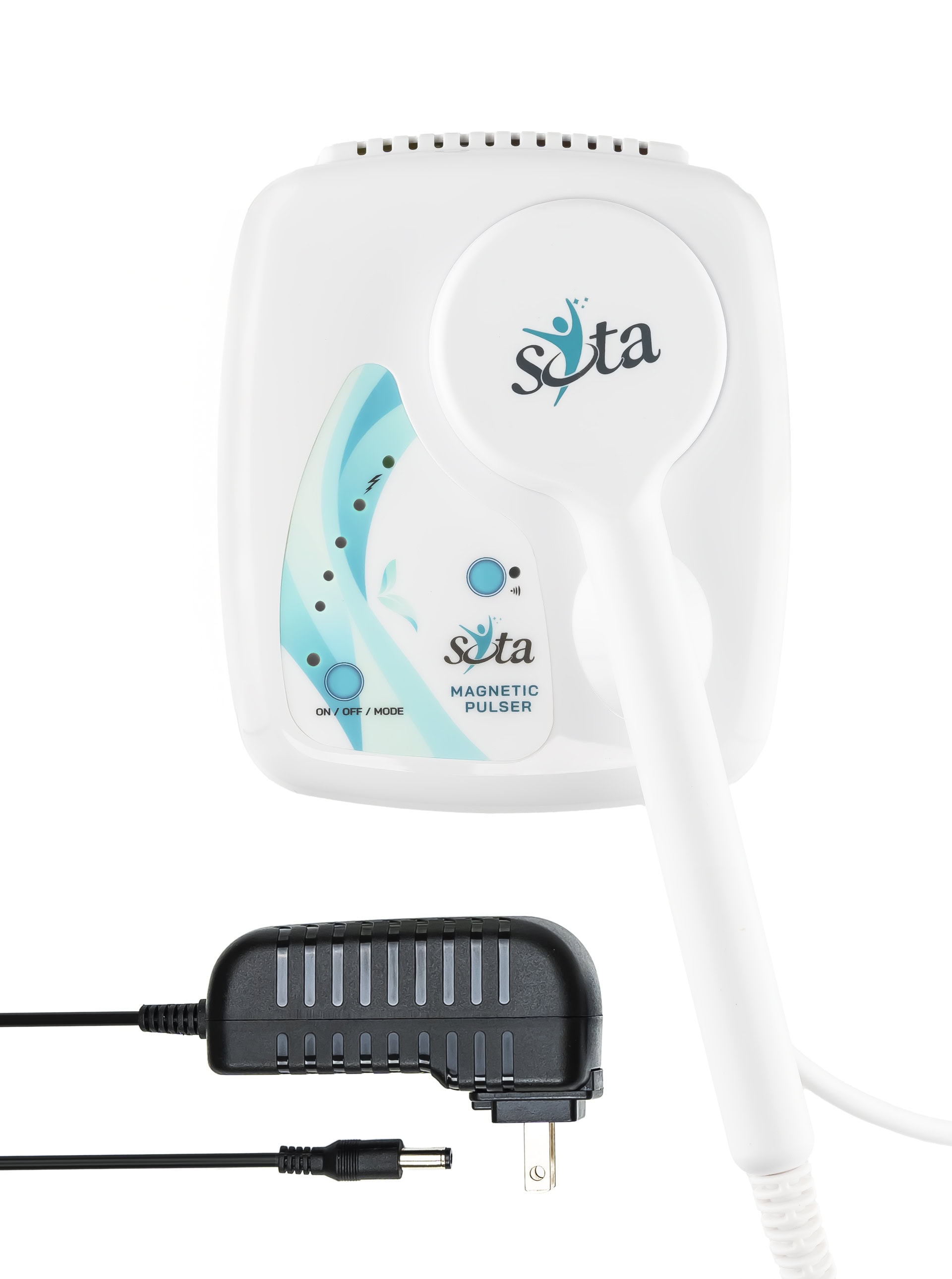

• Comes with an AC/DC Wall Adaptor — your choice of four country blade types (North America, UK, Europe, Australia).
• SOTA Upgrade Program — as a Magnetic Pulser owner you can upgrade to any future model at up to 40% off retail price.
• CE Certified — conforms to essential safety requirements as a household consumer product.
• RoHS Compliant — restricts the use of 6 hazardous materials including lead in electronic and electrical equipment.

Magnetic Pulsing Cautions

• If you experience nerve pain, or an increase in nerve pain while using the unit, discontinue use in the area of pain.
• Caution is advised with heat-producing or heat-sensitive ointments, lotions or medications, as a skin burn may occur.
• With normal use the Hand Paddle becomes very warm to hot. Ensure proper airflow around the head of the paddle; if it feels uncomfortable, turn the unit OFF and allow it to cool before resuming, to prevent a skin burn.
• To prevent damage or loss of information, keep away from homeopathic remedies, credit cards, security cards, key fobs and electronic equipment such as hard drives, hearing aids, cell phones and tablets.
• While this technology is generally considered safe, there exists potential for rare individual reactions that cannot reasonably be foreseen — your use of the SOTA Products constitutes your agreement that you are responsible for your decision to use the technology.

GENERAL CAUTIONS

• Do not use if you have a pacemaker — only use below the waist, and only with your physician’s permission.
• Do not use during pregnancy, as safety has not been established.
• Do not use over an implanted device, such as a shunt.
• Do not use over external or internal bleeding, including menstruation.
• Do not use over a metal implant — metals may absorb heat and could cause discomfort or a burn. Metal dental fillings are rarely affected.
• As with all electrical products, do not use near water, while driving, or while operating heavy equipment.

Output Specifications

• Regular Mode — magnetic field intensity greater than 7,000 Gauss at the face of the Hand Paddle (tested with an F.W. Bell 5080 Tesla Meter); pulse duration > 8.0 mS; 680 pulses per cycle (approximately 40 minutes), released about every 4 seconds; measurable to 14 inches (35 cm).
• Fast Mode — magnetic field intensity greater than 2,500 Gauss at the face of the Hand Paddle; pulse duration > 6.0 mS; 1,600 pulses per cycle (approximately 25 minutes), released about every second; measurable to 7 inches (18 cm).

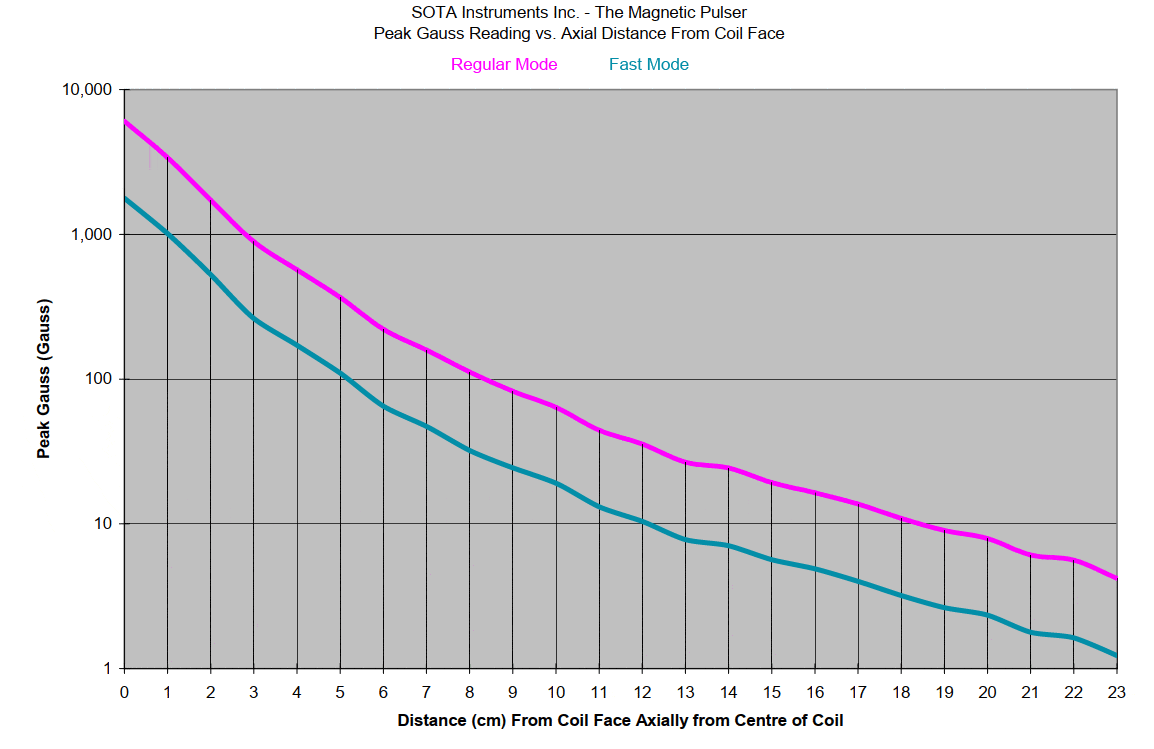

• Inverse-square field — Magnetic flux intensity follows the inverse-square rule — the further you are from the magnetic core, the faster the Gauss intensity drops off. At the face of the coil it is > 7,000 Gauss in Regular Mode and > 2,500 Gauss in Fast Mode.
